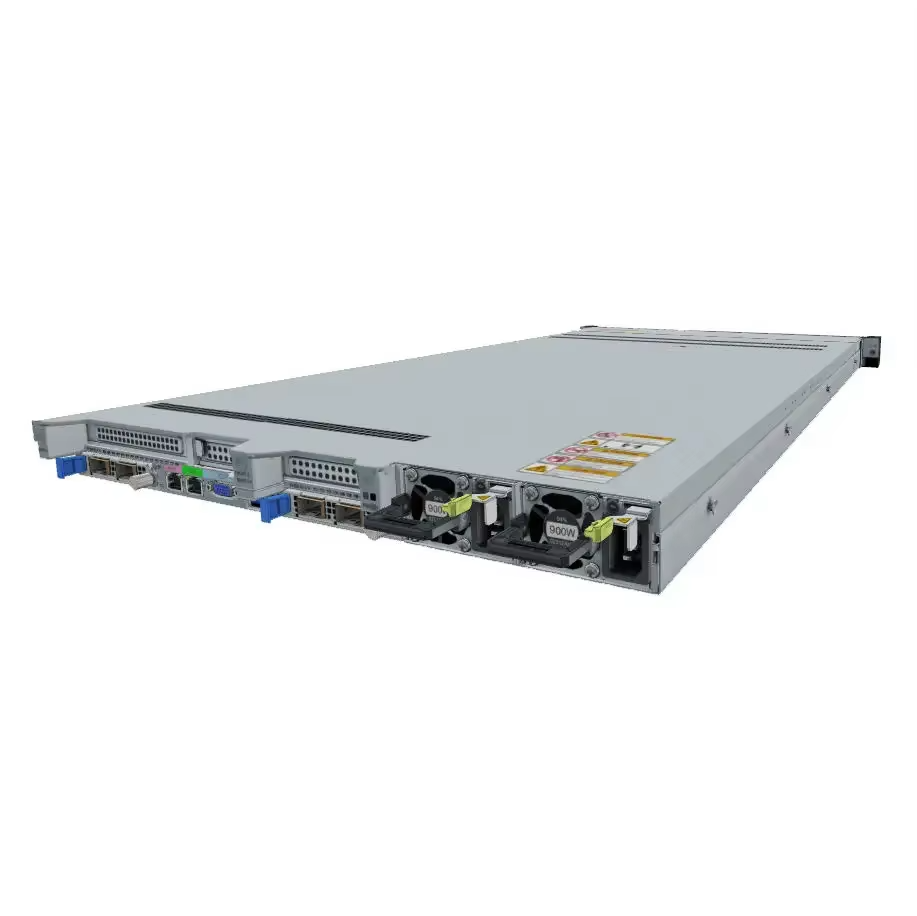

| Server Type | 1U rack server |
| Processors | One or two 3rd Gen In tel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W. |
| Chipset | Intel C621A |
| Memory | 32 DDR4 DIMMss, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Local Storage | Supports various drive configurations and hot swappable:
• 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less)
• 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less)
• 10 x 2.5-inch SAS/SATA/SSD drives
• 8 x 2.5-inch SAS/SATA/SSD drives
• 4 x 3.5-inch SAS/SATA/SSD drives
Supports flash storage:
• Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration,
drive
roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks.
Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as
required. Hot swappable function supported. |
| PCIe Expansion | Provides six PCIe slots, including one PCIe slot dedicated for a RAID card, two FlexIO card slots dedicated for OCP 3.0 network
adapters, and three PCIe 4.0 slots for standard PCIe cards. |
| Fan Modules | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Management | The iBMC chip integrates one dedicated Gigabit Ethernet (GE) management port to provide comprehensive management functions
such as fault diagnosis, automated O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based
on HTML5/VNC KVM; supports CD-free deployment and Agentless for smart and simplified management.
• (Optional) Configured with the FusionDirector management software to provide advanced management functions such as
stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic management throughout the
lifecycle. |
